Product Description

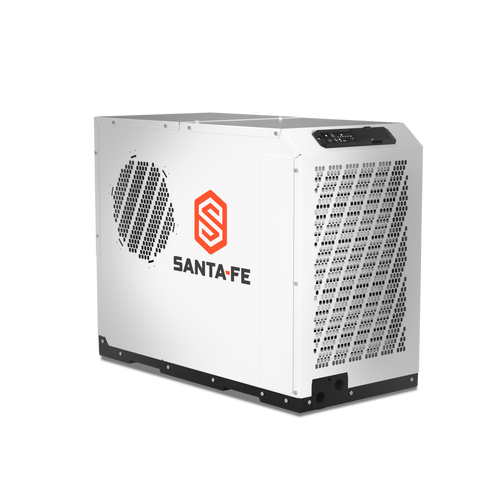

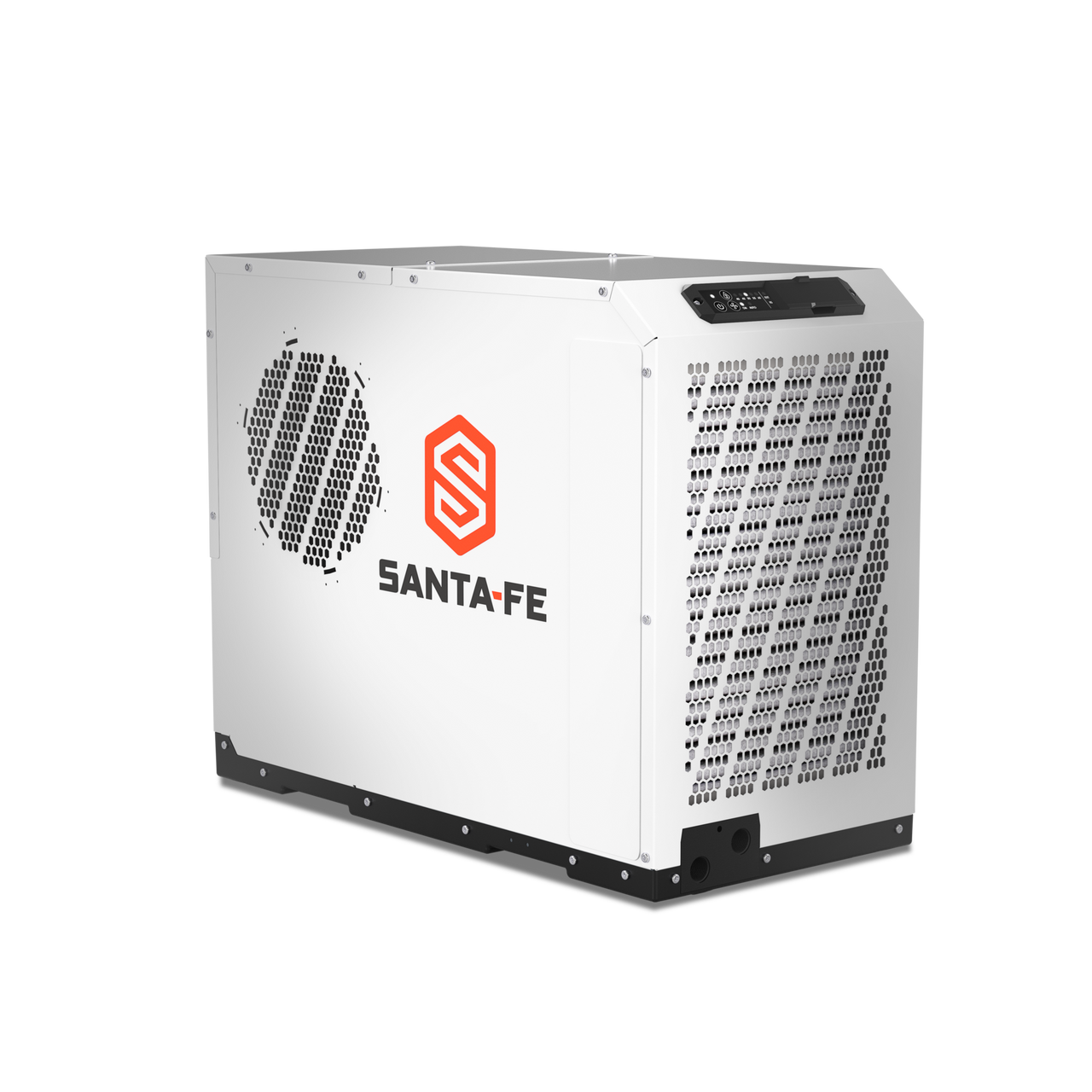

The Santa Fe Advance Dry110 is designed for superior dehumidification in basements, crawl spaces, and attics. It features industry exclusive dual exhaust outlets for maximum space drying and installation flexibility. Other features included an onboard digital control with a terminal block, dew point cut out, and a low maintenance built in P-trap.
Key Features & Benefits
- Dual exhaust outlets allow for air distribution to multiple locations throughout the space
- On-board digital controls with terminal block for wiring SmartAire Remote Sensor and float switch
- Engineered for low temperature operation and the air flow issues that crawl spaces present
- Horizontal cabinet is conveniently sized for installation in crawl spaces, basements or attics
- Auto restart allows the dehumidifier to automatically restart after a power outage
- Dew point cut-out protects from low temperature inefficient operation
- Patented Efficiency Capacity Coil Optimization (ECCO™) technology featuring corrosion resistant double coated coils
- Positive pressure drain that does not require a P-Trap, resulting in less maintenance
- Molded base with integrated handles for easy movement and installation
- 6 Year Warranty (see manual for full details)
Performance
- Water Removal: 110 Pints/13.75 Gal @ 80F & 60% RH
- Efficiency: 7.7 Pints/kWh
- Blower: 370 CFM at 0.0" WG
- Filtration: MERV-13
- Operating Temperature: 49F Min., 95F Max
- Crawl Space Sizing: Up to 3,600 Sq. Ft. / 16,800 Cu. Ft.
Electrical
- Power: 480 watts @ 65F and 60% RH
- Supply Voltage: 115 volt – 1 phase – 60 Hz
- Current Draw: 4.1 amps @ 65F and 60% RH
- Power Cord: 10', 115 VAC, Ground
Specifications
- Drain Connection: 3/4" Threaded Female NPT
- Drain Hose: 8' Direct Gravity Drain Hose (5/8" ID x 7/8" OD)
- Refrigerant: R-454B, 36 oz.
- Width: 14.35”
- Height: 24”
- Depth: 29”
- Weight: 102 lbs
Downloads:
Product Specification Sheet
Owners Manual
Corrosion-Resistant Coils Flyer
Available Accessories:
- MERV 13 Filters
- Outlet Duct Kit
- Hang Kit
Product Videos
Custom Field
Water Capacity (per day) 100 or more Pints
Wi-Fi Connectivity Standard (No Wi-Fi)
